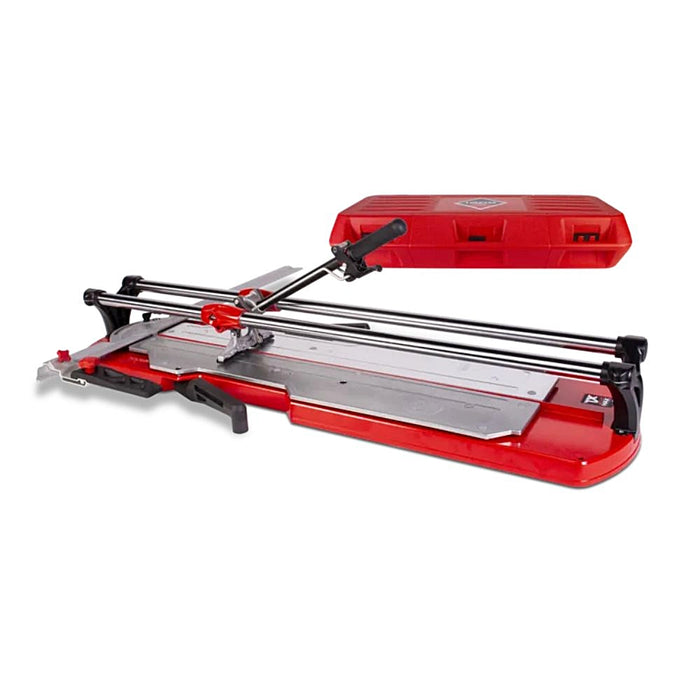

Rubi TX-1020 MAX Manual Cutter

Original price €595,00 - Original price €595,00
Original price
€595,00
€595,00 - €595,00
Current price €595,00

The Rubi TX-1020 MAX is built for heavy-duty cutting of large-format ceramic and porcelain tiles, with exceptional precision and durability. Its multipoint breaker delivers 1,200 kg of separation force, allowing clean cuts on thick and extruded tiles. The rotating square enables fast angular cuts from 0º to 45º, while reinforced steel guides and long aluminium slides ensure stable, smooth operation. The advanced roller position improves scoring visibility, giving professionals greater control.

Capable of cutting tiles up to 102 cm in length (70x70 cm diagonally) and 3–21 mm thick, this model is ideal for large projects. It includes a removable protector for delicate surfaces, a floating table with two side arms for large pieces, a one-handed ratchet and trigger system, two cutting rollers (8 mm and 22 mm EXTREME), a side stop for repetitive cuts, and a protective carrying case. Compatible with all RUBI PLUS rollers.



Features:

  • High-performance multipoint breaker
  • Rotating square system for angular cuts (0º–45º)
  • Separation power up to 1,200 kg
  • Advanced roller position for better visibility
  • Removable protector for delicate surfaces
  • One-handed ratchet and trigger system
  • Floating table with two side arms for large tiles
  • For tile thicknesses 3–21 mm (19 mm with protector)
  • Includes side stop, two cutting roller scoring wheels, and carrying case
  • Compatible with Rubi Endure Plus and Extreme Plus roller scoring wheels



Dimensions:

  • Cutting length: 102 cm
  • Diagonal cutting length: 70x70 cm
  • Cutting height: 3–21 mm (19 mm with protector)
  • Separator power: 1,200 kg
