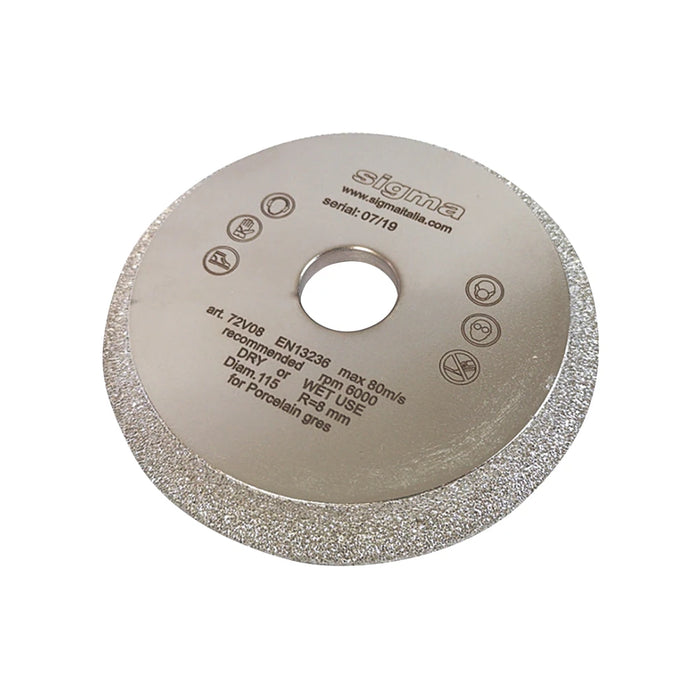

Sigma shaped diamond grinding wheel 115mm for chamfering and half bullnose tile profiling

Sigma Shaped Diamond Grinding Wheel For Bullnose Edges

£234.00 - £248.00
£234.00
£234.00 - £248.00
£234.00

Sigma Shaped Diamond Grinding Wheel for Chamfering is designed for creating smooth round profiles and half-bullnose edges on tiles and stone. With a 115 mm diameter, 22.2 mm bore and high removal rate, it is suitable for both dry and wet processing.



Features:

  • Brand: Sigma
  • Diamond grinding wheel for chamfering and profiling
  • Designed for round profiling / half-bullnose edges
  • Diameter: 115 mm
  • Bore: 22.2 mm
  • Can be mounted on Jolly-Edge for guided profiling
  • High removal rate for efficient shaping
  • Available radius options: 6 mm, 8 mm, 10 mm
  • Suitable for dry or wet processing
  • Works on porcelain, ceramic, granite and marble
  • Recommended speed: approx. 6000 rpm
  • Recommended grinder power: over 900W
  • Approximate lifespan: 250 to 300 linear metres
  • Supplied with restore stick for restoring performance when needed

Dimensions: WØ10.5cm



The Sigma Shaped Diamond Grinding Wheel for Chamfering is a professional profiling wheel designed for creating rounded edges and half-bullnose finishes with accuracy and speed. With a 115 mm diameter and 22.2 mm bore, it is suitable for use with compatible angle grinders and can be mounted on the Jolly-Edge for guided, more controlled shaping.

Built for a high removal rate, this grinding wheel is ideal for shaping and profiling a range of materials including porcelain, ceramic, granite and marble. It can be used for dry or wet processing, giving you flexibility depending on your working method and material.

Available in 6 mm, 8 mm and 10 mm radius options, it allows you to choose the profile size that best suits your project. On porcelain tile, the grinding wheel typically does not need restoring for up to 150 linear metres. If you notice a decrease in working speed after this point, it can be restored using the supplied restore stick. The indicative overall lifespan on porcelain tiles is approximately 250 to 300 linear metres, depending on use and conditions.

For best results, Sigma recommends using a variable-speed angle grinder with power above 900W, set to around 6000 rpm. As with all grinding work, suitable personal protective equipment (PPE) should always be worn.



Suitable Materials

  • Porcelain gres: Excellent
  • Klinker: Excellent
  • Soft marble: Excellent
  • Hard marble: Excellent
  • Single fired: Excellent
  • Granite: Good
  • Terracotta: Good
  • Porphyry: Moderate
  • Stone: Moderate
